Smart Charging Cabinet for DJI Enterprise Batteries

The Mini Cabinet houses up to 3 interchangeable charging modules that operate in coordination with the HarmonyOS system for batch battery charging. Common features: sheet-metal + ABS structure, fan cooling and ventilation, 220 V input voltage, LED display in 1:1 correspondence with the batteries (red / green / blue), supported offline operation and full compatibility with the Mini Cabinet.

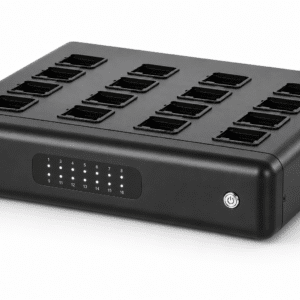

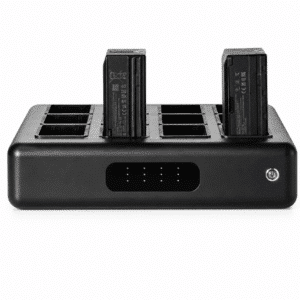

M350-CM M300/M350 module Batteries: M300/M350 series Slots: 12 Dimensions: 452 × 402 × 101 mm Max power: 500 W Interface: RS485 / USB Insertion: Vertical Offline: Supported	M30-CM M30 module Batteries: M30 series intelligent batteries Slots: 15 Dimensions: 452 × 402 × 101 mm Max power: 600 W Interface: Serial port Insertion: Vertical Offline: Supported	M3-CM Mavic 3 module Batteries: Mavic 3 series intelligent batteries Slots: 16 Dimensions: 452 × 402 × 101 mm Max power: 600 W Interface: Serial port Insertion: Vertical Offline: Supported

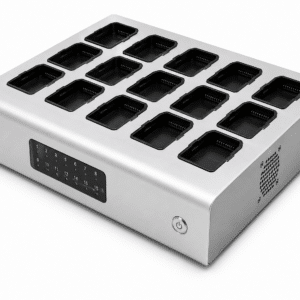

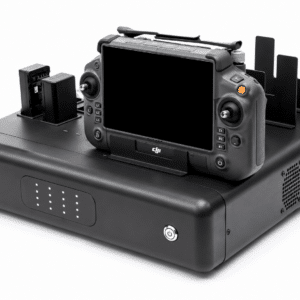

M2-CM Mavic 2 module Batteries: Mavic 2 series intelligent batteries Slots: 15 Dimensions: 454 × 402 × 101 mm Max power: 600 W Interface: Serial port Insertion: Vertical Offline: Supported	M-CM01 Multifunction module Batteries: WB37 / RC / Tablet Slots: WB37 ×8 · RC ×4 · Tablet ×4 Dimensions: 452 × 402 × 101 mm Max power: 350 W Interface: Serial port Insertion: Vertical Offline: Supported	A dedicated module for the Phantom 4 series is also available. The Mini Cabinet manages up to 3 modules at a time: contact the DroneBase sales department for the configuration best suited to your fleet.

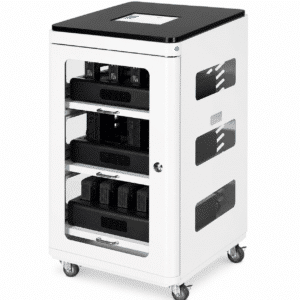

The Mini Smart Charging Cabinet for DJI Enterprise Batteries is the DroneBase compact-format solution for centralized management of the onboard power of small and medium professional DJI drone fleets. Built around a HarmonyOS industrial PC with a 10.1″ touchscreen (1280 × 800), the cabinet automatically charges, maintains and manages batteries in batches, housing up to 3 charging modules at once to cover the main DJI platforms: Phantom 4, Mavic 2, Mavic 3, M30, M300/M350, plus WB37 batteries, remote controllers and tablets. It integrates dedicated fire protection with an intelligent over-temperature cut-off and an extinguishing ball for each module, an integrated BMS and water-immersion detection for real-time monitoring of battery status. The HarmonyOS operating system provides a status dashboard, per-battery charging control, health diagnostics and usage statistics. Thanks to zero-threshold deployment — initialization, firmware updates and policies completed before shipping — it is ready to use with no training required. Certified to the product standard of the HarmonyOS IoT ecosystem, it is ideal for single units, multi-unit management and small-scale operations. Distributed by DroneBase, DJI Gold 5 Dealer certified ISO 9001:2015, with pre- and post-sales technical support.
