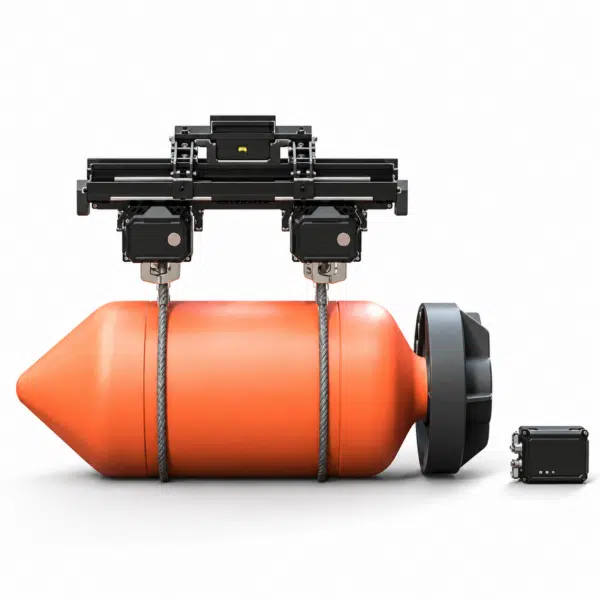

Multifunction release system for the DJI FlyCart 100, built around a three-rail, six-stage hanger with adjustable pitch and up to six releases per mission. Five capabilities in one unit: payload delivery, fire-extinguishing ball drops, water discharge, high-power public address and laser indication. Operated from the drone remote controller, a dedicated controller, manual buttons or over 4G, with real-time feedback on the state of every hook.
| 6 releasesPer Mission | 5 modesDrop Patterns | 6 kgSystem Weight | IP54Protection Rating |
The system brings together functions that would normally need separate units, each with its own purchase, maintenance and setup time. Modules are swapped on the quick-release rail, without redoing the installation.
In an emergency, time is lost in mounting and reconfiguring. A system that installs on a quick-release rail and changes function by swapping a module is worth far more in the field than the sum of its functions.

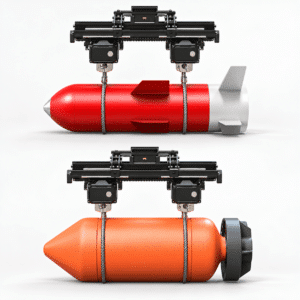

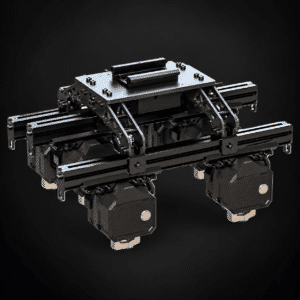

The Smart Dropping System is a drone release system built for rescue, emergency and firefighting operations with the DJI FlyCart 100. Its structure is a three-rail, six-stage hanger with adjustable pitch, allowing up to six independent releases in a single mission and adapting to loads of different shapes and sizes without payload structure constraints.

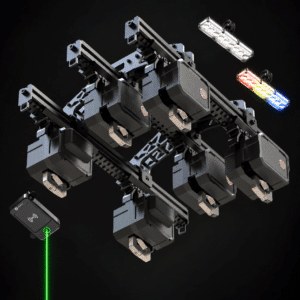

Control runs through a main unit that accepts commands from the drone remote controller, a dedicated controller, manual buttons and 4G, feeding back equipment status and operating data in real time. A millimetre-wave radar measures height above ground. Five drop patterns are available: single hook, left side, centre, right side and all-around. The system includes physical hook-state detection, safety locking and release confirmation, so the operator knows at any moment what is attached and what has already gone.

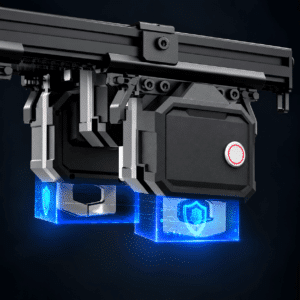

Three expandable modules add to the release function: a fire bucket for water discharge, laser guidance with a 520 nm, 1.2 W green source at adjustable intensity, and a high-power megaphone with recorded file playback and live announcements at a volume adjustable from 0 to 100%. Modules are swapped on the quick-release rail, with no tools and no reinstallation. The system weighs 6 kg, measures 400 × 257 × 235 mm, runs at 24 V and uses a waterproof design extended to the wiring, with an IP54 protection rating and a -25°C to +55°C operating range. Supplied by DroneBase, DJI Gold 5 Dealer certified ISO 9001:2015, with a preliminary configuration review, pre- and post-sales technical support and operational training.
The supply configuration is defined around the operating scenario: the base of the system is common, the function modules are added to match the planned activity.
Which drone does it mount on?
What does the 80 kg maximum load per hook mean?
How many releases can be made in one mission?
How is the release commanded?
What safety features are provided?
How do you switch from release to water discharge?
Are there restrictions on using the laser and the megaphone?
What support does DroneBase provide?
Up to 6 releases per mission · Three rails, six stages, adjustable pitch · 5 drop patterns · Fire bucket, laser and megaphone modules · Control from remote, buttons and 4G · 6 kg · IP54
★ DJI Gold 5 DealerISO 9001:2015DJI FlyCart 100Quick-release rail
