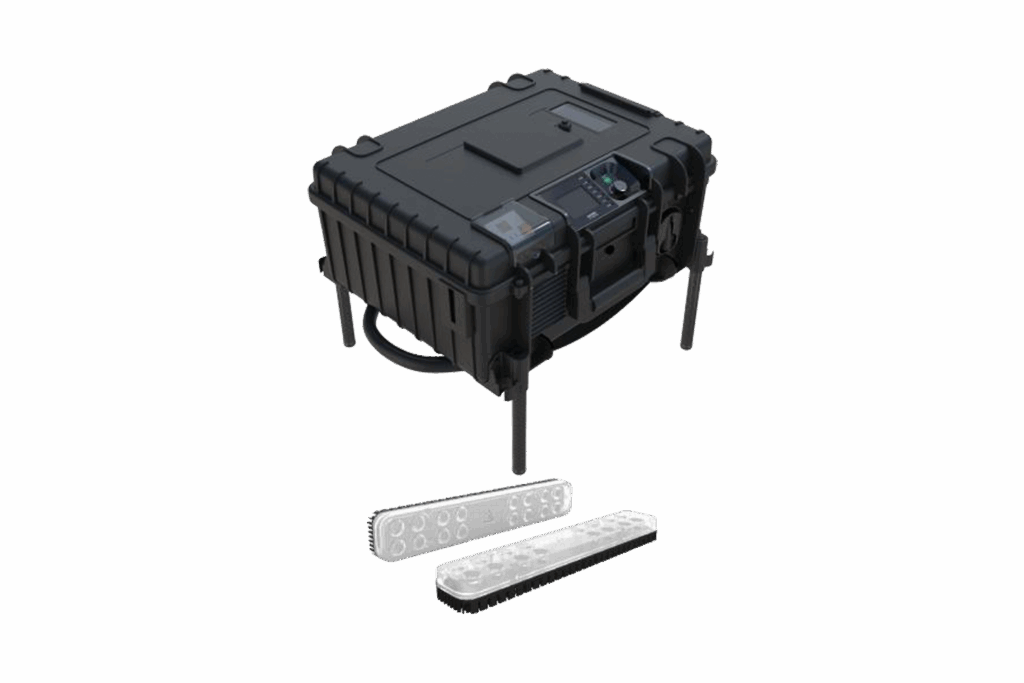

Tethered DJI Matrice350 – Power System for Drones
The Tethered DJI Matrice 350 RT K is the professional solution for providing continuous wired power to the DJI Matrice 350 RTK drone, allowing up to 12 hours of uninterrupted flight time at operational altitude.
Designed for Critical missions, Surveillance, emergency management, public events and night operations, this T\ethered system ensures Maximum Performance in any operational scenario.
With a high-performance micro-tether and intelligent power management system, the PS350 keeps the drone stable and operational for extended missions at altitudes up to 110 meters (80 m with lighting module installed), ensuring constant power and secure data transmission.
Its Plug & Play architecture allows for rapid installation on the DJI Matrice 350 RTK without requiring structural changes, while integration with DJI Pilot 2 via dedicated SDK enables full ground control of functions, parameters, and operational safety
Main Functions:
- Continuous autonomy of up to 12 hours of flight time with DJI Matrice 350
- High-performance nickel alloy micro-tether, length up to 110m (80m when used with LED beacon)
- Powerful 700 W / 70,000 lumen LED spotlight for lighting large areas (up to 5000m² at 80m altitude)
- Plug & Play system, no modification to the aircraft
- Integrated control via DJI Pilot 2 using dedicated SDK
- Power output up to 3 kW
- Rugged and Portable for transportation and protection in the field
- IP54 certification for all-weather operation
- Automatic cable management system with motorized system and adjustable pull system
- 50kg tensile strength, nickel alloy micro-theder system acts as a restraining cable
Why Choose the Tethered System for DJI Matrice 350
The Tethered DJI Matrice 350 PS350 allows you to overcome the limitations of traditional batteries,
ensuring continuous and stable operations for:
- 24/7 video surveillance and monitoring (compatible with Zenmuse H30T and any DJI compatible payload)
- Temporary radio link for telecommunications
- Emergency lighting in night operations
- Support in public safety scenarios and major event management
Thanks to its IP54 resistance and build quality, the system is suitable for missions in harsh weather conditions,
ensuring maximum reliability of your tethered DJI Matrice 350.
Ground Unit – Technical Specifications
- Input voltage: 220 Vac +10%, single-phase 220Vac@50-60Hz
- Output voltage: 350-460 VDC
- Output power: 3000W
- Cable size: 110m length, 2mm diameter,
- Tensile strength 50kg
- Voltage withstand 280-430Vdc,
- Internal resistance less than 10 Ω/ 100m@20 ℃
- Interface: Schuko AC IN, 4 x Type-C 100w, 4 x usb 18w, XT60 out
- Size: 520x435x250mm
- Weight: 16kg
- Operational temperature: -20°c/+50°c
- Weather Proof: IP 54
Shutdown protection: drone continues to fly even in case of sudden power failure
Mounting: portable (backpack or briefcase) with automatic and manual cable rewind function
Ground Unit – Technical Specifications
- Input voltage: 220 Vac +10%, single-phase 220Vac@50-60Hz
- Output voltage: 350-460 VDC
- Output power: 3000W
- Cable size: 110m length, 2mm diameter,
- Tensile strength 50kg
- Voltage withstand 280-430Vdc,
- Internal resistance less than 10 Ω/ 100m@20 ℃
- Interface: Schuko AC IN, 4 x Type-C 100w, 4 x usb 18w, XT60 out
- Size: 520x435x250mm
- Weight: 16kg
- Operational temperature: -20°c/+50°c
- Weather Proof: IP 54
Shutdown protection: drone continues to fly even in case of sudden power failure
Mounting: portable (backpack or briefcase) with automatic and manual cable rewind function
Air Unit – Technical Features
- Input voltage: 380-450 VDC
- Output voltage: 13S
- Output current: 70A
- Interface: EPORT, LP12, XT60/XT30, supports DJIPSDK, WIFI & Bluetooth
- Size: 140x100x100mm
- Weight: 500g
- Operational temperature: -20°c/+50°c
- Weather Proof: IP 54
NB: The Air unit installs between the battery and the drone, without modification to the Matrice 350
7000 Lumen LED Beacon – Lighting Kit for DJI Matrice 350 (optional)
Turn your DJI Matrice 350 RTK into an Ultra-portable Aerial Lighting System with the ultra-powerful 70,000 lumen / 700 W LED Beacon.
This powerful solution is capable of daylighting an area of 5000 (like 1 soccer field) from an altitude of 80 meters,
providing optimal visibility in night or low-light scenarios.
With its PSDK integration with DJI Pilot 2, the kit allows real-time control of light intensity, operating modes, and additional functions directly from the radio control, without the need for external management systems. The compact and robust design allows for quick mounting on drone undercarriages while maintaining full compatibility with the DJI Matrice 350 and requiring no modifications to the aircraft.
Main Functions
- Extreme light output: 70,000 lumens, 700 W
- Wide coverage: brightly illuminates a soccer field from 80 m elevation
- Full compatibility with DJI Matrice 350 RTK
- PSDK integration with direct control via DJI Pilot 2
- Full management from the ground: dimming and activation of accessory modes
- Blue and red flashing lights for signaling and visual identification
- Quick assembly: attachment to drone carts without structural modification
Ideal applications
- Emergency lighting
- Search and rescue operations (SAR)
- Events and night shooting
- Support in public safety and special operations scenarios
With the Matrice LED 70000 lumen kit for DJI Matrice 350, you can turn your drone into a real flying light tower, ready to operate in any condition and situation.
Led Beacon – Technical features (optional)
- Compatible only with DJI Matrice 350 RTK
- Abducted attachment to trolleys
- Direct feeding via Air Unit of the tethered
- Size: 225×38.5×21 (4 pieces)
- Weight: 980g total including Control Module
- Light type: White 6500K
- Power: 70,000LM/700W
- Lighting angle: 60°
- Installation Type: Attachment to landing gear (without modification)
- Operating temperature: -20°C / +50°C
- Weather resistance: IP54
NB: The lighting system works only in conjunction with the tethered system, from which it receives its 24-60V power supply
Package Contents.
1 x Tethered System DJI Matrice 350 – Ground Unit
1 x Tethered System DJI Matrice 350 – Air Unit
1 x Matrice LED 70000Lm/700W (Optional)
1 x Hard Carrying Case
1 x English Manual
1 x 12-month Warranty
