Tethered System DJI Matrice 350 – 110m
Discover the Tethered System with Matrix Light for DJI Matrice 350 RTK: provides stable power supply for DJI Matrice M300/M350 drones. Matrix Light LED 70000 lumens, 3000m² coverage. (Compatible only with DJI Matrice 350 RTK)
From 11.899,00 € TAX Included
Tethered System DJI Matrice 350
Discover the Tethered System for DJI Matrice 350, an advanced
power system designed for DJI Matrice M350 drones.
This Plug & Play solution provides continuous and reliable power,
perfect for long duration missions and H24 operations with your
DJI Matrice 350 RTK drone, without requiring any modifications to the aircraft.

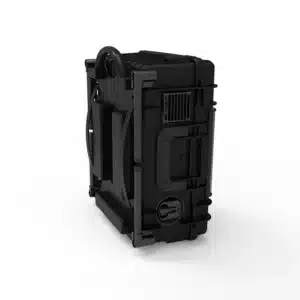

With a powerful 3 kW power system built into a rugged Pelican Case,
you can keep your drone flying up to an altitude of 110 meters.
The cable management system ensures simplicity and safety in every operation.
In addition, the IP54-certified system allows the drone to be used in any
weather conditions, ensuring high performance in any situation.
The main advantages of the Tethered System for DJI Matrice 350
Discover the unique benefits of the Tethered System for DJI Matrice 350, designed to ensure prolonged and uninterrupted flight,
thanks to innovative solutions that improve operational efficiency and mission safety.
This system offers advanced features that optimize control and power management of the drone.
Extended flight time: The Tethered System allows the DJI Matrice 350 to fly for an extended period of time
without the need to change batteries. This is ideal for long and critical operations, such as monitoring and surveillance,
offering remarkably long range increased thanks to the cable connection.
Advanced Operational Safety: Thanks to the wired connection, the system eliminates the risks associated with in-flight battery
depletion, providing greater safety during sensitive missions.
This dramatically reduces the possibility of failures due to power failure.
Reduced Management Costs: With the Tethered System, there is no need to purchase and maintain a large number
of spare batteries, reducing long-term operating costs.
This system provides significant savings in drone power costs, increasing overall efficiency.
Increased reliability in critical conditions: The system is ideal for operations in emergency situations where continuity of flight is essential.
The ability to continuously power the drone provides increased reliability even in the most challenging conditions.
Ease of installation and use: The Tethered System is easy to install and use, with an ‘intuitive interface.
This enables rapid deployment in the field, reducing preparation time and increasing operational productivity.
Main features Ground Unit
- Input voltage: 220 Vac +10%, single-phase 220Vac@50-60Hz
- Output voltage: 280~430Vdc
- Output power: 3000W
- Cable size: 110m length, 2mm diameter,
- Interface: Schuko AC IN, 4 x Type-C 100w, 4 x usb 18w, XT60 out
- Size: 520*435*250mm
- Weight: 16kg
- Operational temperature: -20°c/+50°c
- Weather Proof: IP 54
Main features AIR Unit
- Input voltage: 380~420Vdc wide range input
- Output voltage: 36.5-52.5Vdc
- Output power: 3000W (rated long-term output)
- Heat dissipation method: Natural air cooling
- Interface: XT60 Output, output battery interface, outputXT60
- Size: 140*100*100mm
- Weight: 500g
- Operational temperature: -20°c/+50°c
- Weather Proof: IP 54
Drone Lighting System (optional)
Turn your DJI Matrice 350 RTK into a powerful ultra-portable lighting system thanks 70000-lumen LED Matrice lighting kit capable of brightly illuminating a soccer field from an altitude of 80m.
The kit attaches without any modification to the drone’s undercarriages and can be controlled from the ground directly from the drone’s remote control thanks to DJI’s PSDK compatibility. The user can manage the brightness level from the ground as well as accessory functions such as Blue and Red colored flashing lights.
Main features Lighting System
- Compatible only with DJI Matrice 350 RTK
- Size: 225*38.5*21 (4 PCS)
- Weight: 980g
- Light tipe: White 6500k
- Power: 70000 lumens/700w
- Light angle: 60°
- Installation tipe: clump to landing gear (no modification)
- Operational temperature: -20°c/+50°c
- Weather Proof: IP 54
NB.The Lighting system works only in conjunction with the tethered system from which it takes power
Technical Details.
Tethered System DJI Matrice 350
| Airborne module size | 140mm* 100mm* 100mm |
|---|---|
|
Weight |
530g |
|
Output power |
3Kw |
|
Tethered box ground end size |
520mm*435mm* 250mm(back frame included |
|
Tethered box weight |
16kg |
|
Tethered box rated power |
3Kw |
|
Cable length |
110mt |
|
Operating temperature |
-20℃ – +50°C |
Drone Lighting System
| Overall dimension | 225 × 38.5 × 21（ 4pcs） |
|---|---|
|
Weight |
980g |
|
Lighting type |
White light(6500K) |
|
Total power |
700W/70000LM |
|
Light irradiation angle |
White light 60° |
|
Installation way |
Quick installation at the bottom, no modification to the aircraft for lighting installation |
|
Operating temperature |
-20℃ – +50 °C |
