IMSI Catcher for DJI Matrice 350 RTK (4CH)
The IMSI Catcher (IMSI-X04) represents the most advanced evolution in cellular signal-based airborne intelligence systems. Developed to operate with DJI Matrice 350 RTK, it enables identification, tracking and location of mobile devices by collecting and analyzing IMSI identifiers, even in densely built-up urban areas or emergency scenarios.
IMSI Catcher for DJI Matrice 350 RTK (4CH)
Advanced Technology for Surveillance and Research
IMSI Catcher for DJI Matrice 350 RTK (4CH)
Advanced Technology for Surveillance and Research
Are you looking for a viable alternative to Life Seeker for tracking mobile devices in search, rescue, or intelligence operations?
Our advanced IMSI Catcher system offers equivalent and, in many cases, superior functionality to Life Seeker, with multi-band support, LTE/5G compatibility, and simplified operational interface for field use.
Through integration with drones or vehicles, mobile targets can be located even in isolated or off-grid areas. Like Life Seeker, our IMSI Catcher enables real-time identity detection of mobile devices, but with greater operational autonomy and algorithms optimized for silent operations. Ideal for law enforcement, civil defense, and security agencies.
TheIMSI Catcher (IMSI-X04) represents the most advanced evolution in cellular signal-based airborne intelligence systems. Developed to operate with DJI Matrice 350 RTK, it allows mobile devices to be identified, tracked and located by collecting and analyzing IMSI identifiers, even in densely built-up urban areas or emergency scenarios.
Compared with the 2-channel version (IMSI-X02), the IMSI-X04 offers triple operational efficiency and 50% higher detection capability in height, ensuring greater accuracy and speed in critical operations.
With support for major telecommunication standards, including GSM (2G), UMTS (3G), LTE (4G), and 5G NSA/SA, and the ability to operate even in the absence of a cellular signal, the IMSI Catcher offers unprecedented detection and tracking capabilities.

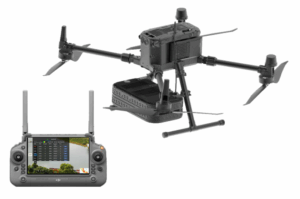

Plug & Play Compatible with DJI Matrice 300 / 350 RTK
The IMSIX-04 system is specifically designed as
payload for DJI Matrice 300/350 RTK drones via
E-Port interface, ensuring immediate integration
andwithout hardwarechanges.
Main Benefits
- Plug & Play – Installs in less than 1 minute on DJI Matrice 350, without calibration or accessory equipment
- 100% compatible with DJI Matrice 350 RTK, interfacing directly with the DJI datalink and control platform
- Multi-standard IMSI detection: compatible with GSM (2G), UMTS (3G), LTE FDD/TDD (4G) and 5G NSA/SA networks.
- Unified UI: map, video, telemetry and IMSI results in one screen.
- High localization accuracy: up to 10 m in autonomous mode.
- Dual software-configurable RF channel, supports blacklist/whitelist.
- Operating range up to 15 km (under FCC-compliant, unobstructed conditions).
- Very High Detection Capacity-Up to 300 meters in height and 8 meters in depth, ideal for operations in buildings or rubble.
- High Operational Efficiency – Detects up to 800 terminals/minute, covering large areas with speed and accuracy
- Operational even when there is no network signal or adverse weather conditions.

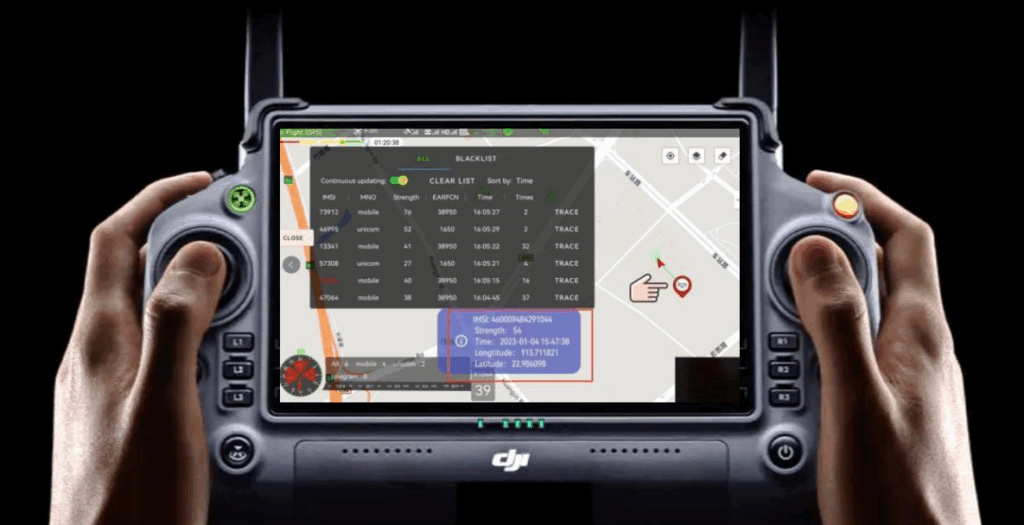

- “XP²-Locator” software built into the DJI radio control or Android tablet.
Main Applications
- Security and Surveillance – Mobile device monitoring and tracking for intelligence and law enforcement operations.
- Search and Rescue – Identification of missing persons in forests, rubble or remote areas, even without network coverage.
- Border Control – Detection of mobile devices in transit areas for security operations and prevention.
- Emergencies and Natural Disasters – Rapid location of people trapped as a result of fire, earthquake or flood.
Main Functions
- IMSI identification: The system detects and records the IMSIs of all mobile devices in the coverage area.
- Automatic configuration of network parameters by network scanning and autoconfig system
- Blacklist & Whitelist: Ability to configure lists of individuals to be monitored or excluded from the search.
- Customizable Detection Modes:
- FENCE Mode – Records all connected phones, but avoids duplication.
- BLACKLIST Mode – Tracks only the IMSIs in a predefined list.
- TRACKALL Mode – Records all devices without exclusion.
- Geolocation: Associates collected data with GPS/BDS coordinates and timestamps for post-mission analysis.

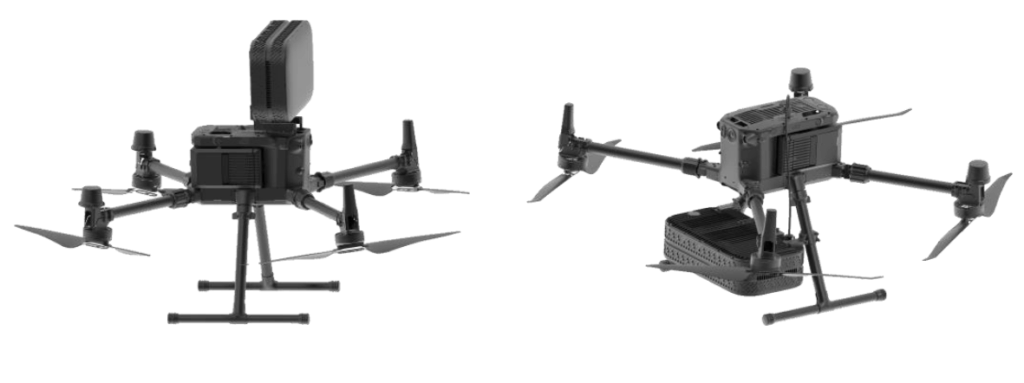

- Dual Mounting Modes:
- Under the drone (downward antenna) for sky-to-ground surveillance missions
- Above the drone (horizontal antenna) for surveys in vertical urban environments, such as multi-story buildings
Specifications
System Components
Included in the Kit
- IMSI Catcher Module (IMSIX04)
- DJI M300/M350 RTK Stand
- XP²-Locator Software License
- Manuals in Italian
- Remote technical support
Conclusion
The IMSI Catcher for DJI Matrice 350 RTK represents a state-of-the-art solution for mobile detection and surveillance, combining power, accuracy, and Total integration with DJI Matrice 350 RTK Drones. With its ease of use and long-distance identification and tracking capabilities, it is a must-have device for security, search, and critical operations missions.

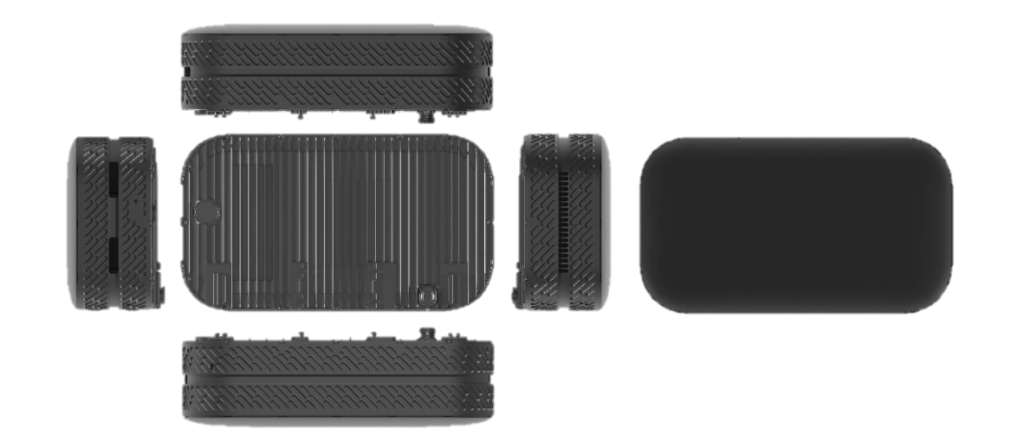

Dimensioni: 334.6*188.6*100.3mm
